Case example of F series installation (Store Facility)
Lalaport Nagoya Minato Aquls

Project overview

Location:	Minato ward, Nagoya-shi, Aichi-pref.
User:	Mitsui Fudosan
Building type:	Large commercial complex
Number of floor:	2 commercial buildings (4/2 floors each),
	2 parking building (6 floors)
	Total 4 buildings (Commercial area space 59,500 m2, 217 shops)
Completion:	Sep. 2018
GHP location:	4th & 5th floors of parking building
Gas distributor:	TOHO GAS Co., Ltd.
Gas type:	Natural gas

Product installed

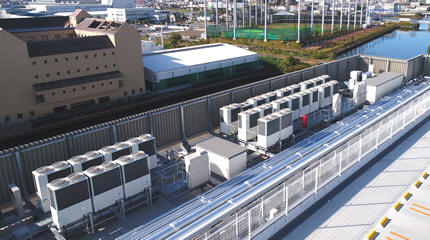

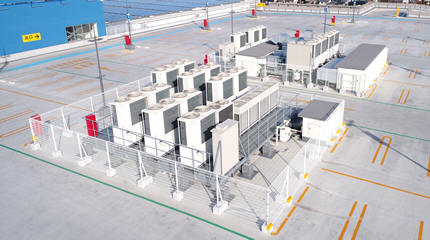

Outdoor unit (On the rooftop of building)

Outdoor unit

F2/E4 series
	Stand-alone type
	8HP	AXGP224E4ND	×	16	units
	10HP	AXGP280E4ND	×	11	units
	13HP	AXGP355E4ND	×	9	units
	16HP	AXGP450F2ZD	×	1	unit
	20HP	AXGP560F2ZD	×	2	units
	25HP	AXGP710F2ZD	×	4	units
	Stand-alone type (with generator-mounted spec.)
	16HP	AHGP450F2ZD	×	32	units
	20HP	AHGP560F2ZD	×	27	units
	25HP	AHGP710F2ZD	×	28	units
	30HP	AHGP850F2ZD	×	24	units
	Combined connection type (with generator-mounted spec.)
	16HP	AHWGP450F2ZD	×	20	units
	20HP	AHWGP560F2ZD	×	31	units
	25HP	AHWGP710F2ZD	×	9	units
Total				214	units
4,148					HP

Indoor unit

	Ceiling mounted cassette Round Flow type	×	877	units
	Ceiling mounted cassette Double Flow type	×	6	units
	Ceiling mounted cassette Single Flow type	×	2	units
	Ceiling built-in type	×	46	units
	Ceiling mounted duct type	×	12	units
Total			943	units
