Case example of E1 series retrofit installation (Educational Facility)
Nagoya University Higashiyama Campus Graduate School of Engineering, Building 1 Retrofit

Project overview

Location:Chikusa ward, Nagoya-shi
User:Nagoya University
Building type:Post Graduate Researching building
Number of floor:9 floors
Total floor area:16,157 m2
Retrofit:Nov. 2009
GHP location:On ground and on the rooftop of building
Gas distributor:TOHO GAS Co., Ltd.
Gas type:Natural gas 13A

Outer appearance
Chikusa ward, Nagoya-shi Nagoya University Higashiyama Campus Graduate School of Engineering, Building 1

Product installed

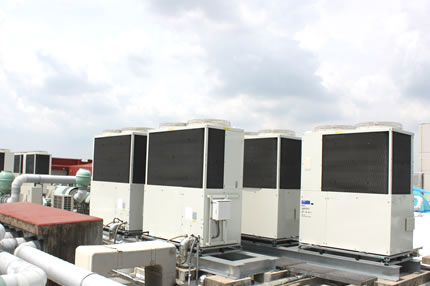

Outdoor unit (On the rooftop of building)

Outdoor unit

Indoor unit (Lecture Room)

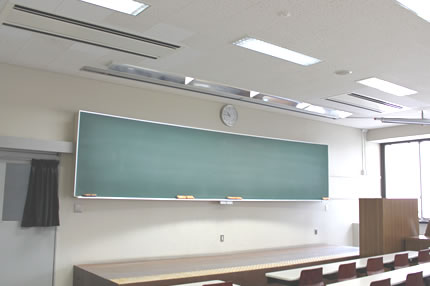

Lecture Room

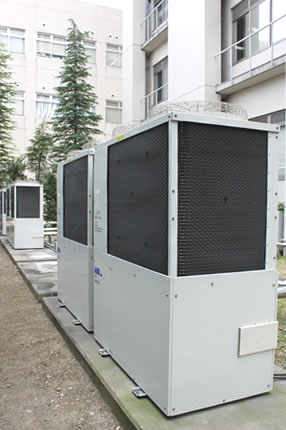

Outdoor unit (On ground)

Outdoor unit

Precondition

Gas Engine Driven Heap Pump
833HP

Aisin recommendation

E1 series retrofit type
Outdoor unit
Combined connection retrofit type
  (with generator-mounted spec.)
 25HPAHWYGP710E1N×12units
 20HPAHWYGP560E1N×15units
 16HPAHWYGP450E1N×13units
Stand-alone retrofit type
 (with generator-mounted spec.)
 25HPAHYGP710E1ND×1unit
Total 833HP
Indoor units
Ceiling mounted cassette Round Flow type
 AXFP90MCP90×7units
 AXFP56MCP56×5units
 AXFP160MCP160×1unit
 AXFP71MCP71×1unit
Ceiling mounted cassette Double Flow type
 AXCP56MP56×87units
 AXCP45MP45×83units
 AXCP71MP71×72units
 AXCP90MP90×49units
 AXCP36MP36×13units
 AXCP112MP112×10units
 AXCP140MP140×5units
 AXCP28MP28×5units
 AXCP22MP22×1unit
Ceiling suspended type
 AXHP90MP90×2units
 AXHP80MP80×2units
Total 343units

Effect after the retrofit with E1 series (example)

saved installation space
Compact E1 series design saved installation space.

Combined connection type outdoor unit,
  • Save energy as only 1 unit operates at times of low-power demand.
  • Longer equipment longevity via unit rotation.
  • Reduce Labor & material costs.

User's voice (This is an individual impression. It varies according to installation situation.)

Reason of selection

  • Existing GHP system was due for replacement.
  • We selected GHP due to limitation of electricity use and restricted air conditioning operation.
  • We selected Combined connection type outdoor unit as gas distributor advised us that multiple connection is energy efficient and environmentally friendly but also prolongs equipment longevity via unit rotation.
