Case Examples
Visit the Aisin Case Examples page for detailed examples of installations and customer feedback.
| Location: | Kariya-shi, Aichi-pref. |
|---|---|
| User: | AISIN CORPORATION |
| Building type: | Office |
| Number of floor: | 15 floors |
| Completion: | Mar. 2010 |
| GHP location: | Balconies on each floor |
| Gas distributor: | TOHO GAS Co., Ltd. |
| Gas type: | Natural gas |

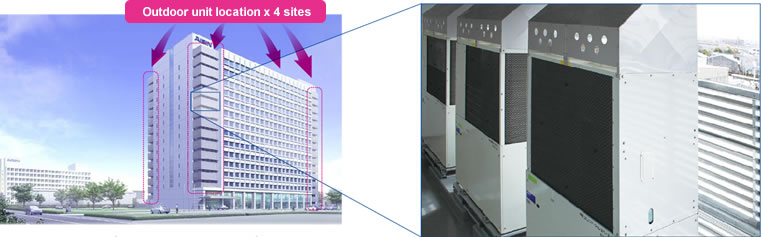

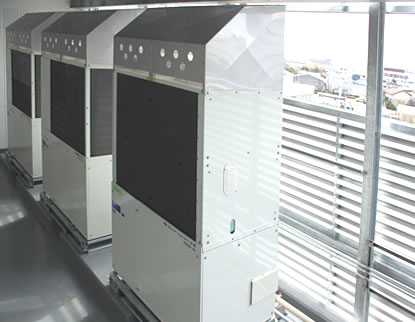

Outdoor unit
(Installed at each floor)
(Right: 16HP (small), Left: 20HPX2units)
(Optional hood attached to avoid short-circuit)

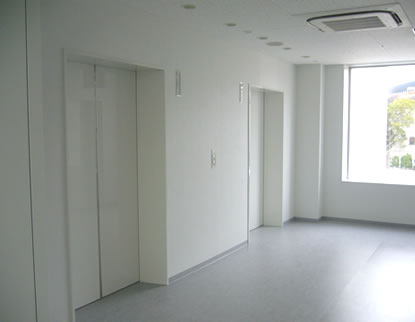

Indoor unit
(Installed at elevator hall)
| E1 series | |||||
| Stand-alone type | |||||
| 8HP | AXGP224E1N | × | 1 | unit | |
| 10HP | AXGP280E1N | × | 6 | units | |
| 13HP | AXGP355E1N | × | 4 | units | |
| 16HP (small) | AXGP450E1NS | × | 31 | units | |
| 20HP | AWGP560E1N | × | 46 | units | |
| 25HP | AXGP710E1PE | × | 39 | units | |
| Combined connection type | |||||
| 20HP | AWGP560E1N | × | 2 | units | |
| Total | 129 | units | |||
| 2,551 | HP | ||||
| Ceiling mounted cassette Round Flow type | × | 619 | units | Ceiling mounted cassette Corner type | × | 2 | units |
| Ceiling built-in type | × | 2 | units | |
| Concealed duct type | × | 2 | units | |
| Floor standing duct type | × | 7 | units | |
| Wall mounted type | × | 1 | unit | |
| Kitchen air conditioner | × | 19 | units | |
| Outside air-handling air conditioner wall mounted type | × | 51 | units | |
| Total | 703 | units | ||
