Case example of E1 series retrofit installation (Hospital/Welfare Facility)
Mizuho club

Project overview

Location:	Tennoji ward, Osaka-shi
User:	Medical Corporation Mizuhokai
Building type:	Nursery (40 rooms, 100 people available)
Number of floor:	7 floors
Completion:	1997 Retrofit in Oct. 2009
GHP location:	On the rooftop of building
Gas distributor:	OSAKA GAS Co., Ltd.
Gas type:	Natural gas 13A

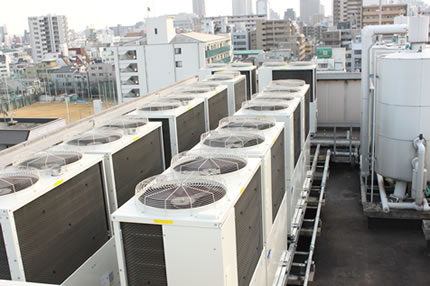

Outdoor unit (On the rooftop of building)

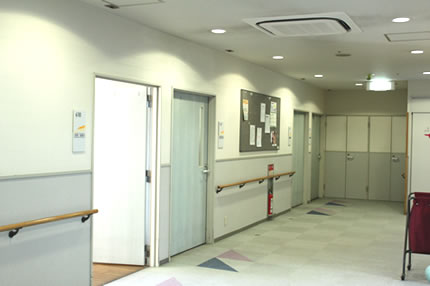

Indoor unit

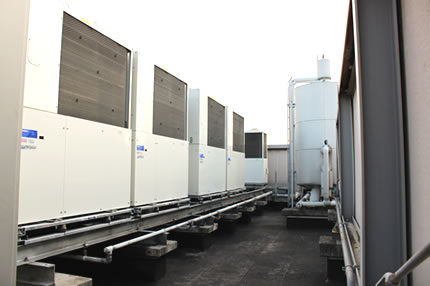

Outdoor unit (On the rooftop of building)

Enough space for maintenance activity

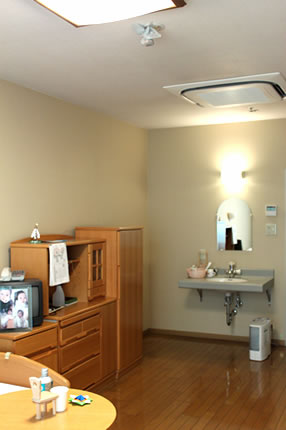

Indoor unit

Gas Engine Driven Heat Pump

E1 series retrofit type
Outdoor unit
	Combined connection type
	(with generator-mounted spec.)
	16 HP	AHWYGP450E1ND	×	2	units
	20 HP	AHWYGP560E1ND	×	5	units
	25 HP	AHWYGP710E1ND	×	3	units
	Stand-alone type
	13 HP	AXYGP355E1ND	×	1	unit
Total				220	HP
Indoor unit
	Ceiling mounted cassette Round Flow type
	AXFP36MC	P36	×	21	units
	AXFP45MC	P45	×	40	units
	AXFP56MC	P56	×	23	units
	AXFP71MC	P71	×	13	units
	AXFP90MC	P90	×	1	unit
	Ceiling mounted cassette Double Flow type
	AXCP28M	P28	×	1	unit
	Ceiling mounted cassette Corner type
	AXKP28M	P28	×	3	units
	AXKP36M	P36	×	5	units
	AXKP56M	P56	×	1	units
	Ceiling built-in type
	AXSP112M	P112	×	6	units
Total				114	units

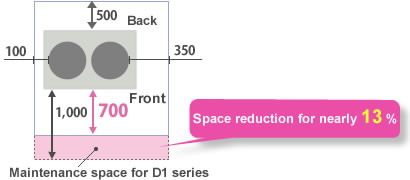

Maintenance space (In case of 450 to 710 type)

Less maintenance space required than previous model
achieved by equipment size and weight reduction.

We have been using GHP. We considered to replace the existing GHP with GHP again since it was not necessary to up grade the electricity capacity.
We considered higher energy saving of combined connection type of outdoor unit and selected Aisin GHP again.

E1 series requires less maintenance space clearance for its compact design and light weight.

*	"Round Flow" is the trade mark of DAIKIN INDUSTRIES, Ltd.
